Specifications

Product Code

12001-AH007

WEIGHT(kg)

26.5

NO. OF BOX

LENGTH (mm)

1100

WIDTH (mm)

450

HEIGHT (mm)

450

Make

HONDA

Model

CR-Z

Model Year

2011-2016

Engine

LEA-MF6

Chassis code

ZF1

Drive Train

FWD

Remarks

Product: GT SUPERCHARGER PRO KIT, S/C SIZE: GTS4015HP, It needs setting for each vehicle using ECU. For Fuel upgrade kit (14007-AH003) setting.

6,350.00 $

5 Adet Kaldı! Acele Et!

Ürün Açıklaması

Since its introduction, CR-Z is very popular for the world’s first hybrid sport car. HKS tried very hard to develop a supercharger for the hybrid vehicle. And we have adopted HKS famous GT Supercharger which is centrifugal type. It can provide flat torque from the low RPM and have a steady power to the high RPM.

【Features】

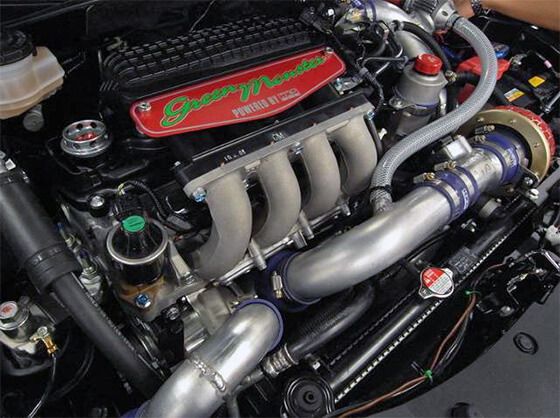

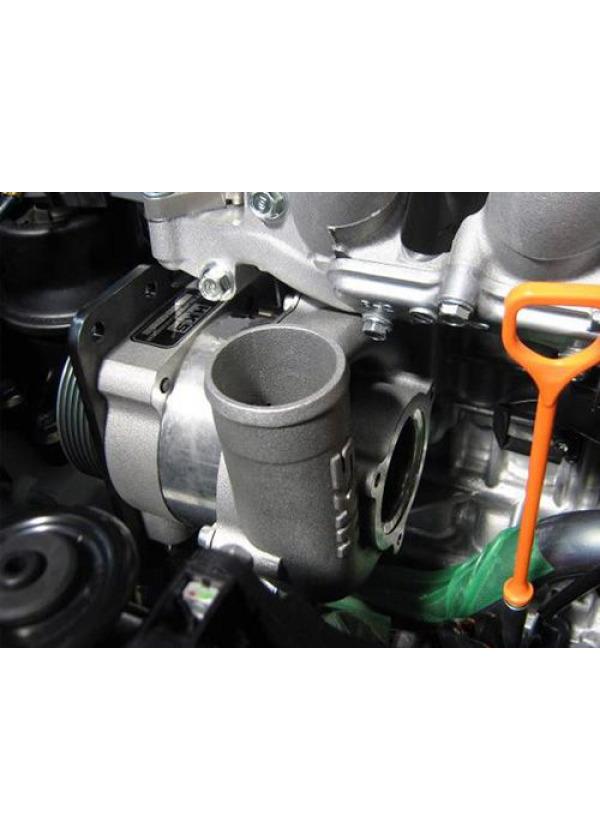

A perfect complete kit for CR-Z which HKS original design of GTS 4015 Supercharger was adopted.
All necessary installation parts are included in the Complete Kit. Installation of the kit enables the engine output to increase to 200ps/170ps.
Pro Kit consists of everything except the F-CON iS + OSC of the Complete Kit.
By using with Fuel Upgrade Kit together, you can upgrade from STEP 1 to STEP 2.
No modification to the engine is necessary if the engine output is increased up to 200ps.
(However, it is recommended to use HKS engine upgrade parts for race use.)
The kits are not applicable on vehicles equipped with a automatic transmission.

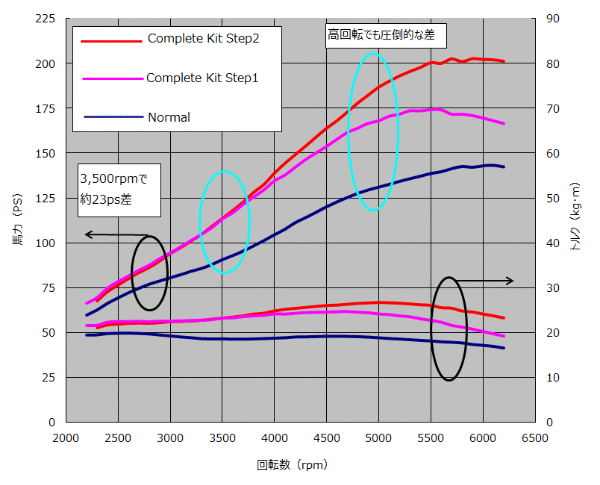

【Performance】

	Power	Torque
Complete Kit Step2	202.4ps/5,700rpm	26.7kg-m/5,000rpm
Complete Kit Step1	175.1ps/5,500rpm	24.6kg-m/4,700rpm
Normal	143.4ps/6,100rpm	19.8kg-m/2,700rpm

* These are results of in-house test. Results may vary depending on measuring instruments.

【Notes for Installation of Complete Kits】

The factory ECU must have the standard data.
Replace the spark plugs with NGK#8 or equivalent. It’s recommended to use HKS Super Fire Racing M40i.
High octane gasoline must be used
Since the factory washer tank is removed to install the kit, DENSO Washer Assy (160200-5070) or similar item may be required.
Average required installation time is 6 to 8 hours.

Required Parts for Installation
ECU	Factory ECU w/ Standard Data
CAT	Factory CAT
Exhaust	HKS SILENT Hi-Power or Factory
Spark Plug	HKS M40i or higher heat range spark plug
E/G oil	SUPER OIL Premium 0W25 or 7.5W35

【Complete Parts】

	Complete Step2	Complete Step1	Pro Kit	Fuel Up
Supercharger Assy	○	○	○	×
S/C Oil system	○	○	○	×
S/C installation bracket	○	○	○	×
Suction Pipe + Blow off	○	○	○	×
Intercooler ASSY	○	○	○	×
Intercooler　Pipe	○	○	○	×
Other Bracket	○	○	○	×
F-CON iS+OSC	○	○	×	×
Injectors	○	×	×	○
Restrictor	φ34mm	φ28mm	φ28mm	φ34mm
