Specifications
GT SUPERCHARGER PRO KIT, S/C SIZE: GTS7040L, /GT S/C Ver.3 Pro KIT /Minor modification of the bumper reinforcement, radiator support, and front chain cover is required. (Estimated Installation Hours: Approx. 8 hrs.) /For US model only. The ECU package, Flash Editor, is included but is only compatible with 2013–2016 manual transmission models with the following ECU ID codes: ZA1J700C, ZA1J900C, ZA1JA00C, ZA1JA01C, ZA1JB00C, ZA1JB01C, ZA1JD00C, ZA1JF00C. HKS does not offer additional ECU recalibration services or development for unsupported ECU ID codes. We strongly recommend verifying your vehicle’s ECU ID using a reader tool before purchasing. For vehicles with unsupported ECU IDs, please purchase part number 12001-KT004, which is the supercharger kit without the Flash Editor. California: Prop 65 Warning.
Supercharger kit with new layout best match with the 91 octane gasoline.
■Features
Matching with the 91 octane gasoline is optimized. The kit layout and supercharger setting are improved from the existing kit.
The engine output shows a 50% increase from the stock.
PULLEY UPGRADE KIT and E85 fuel + upgraded fuel part enable the engine to output 90% more compared to the stock.

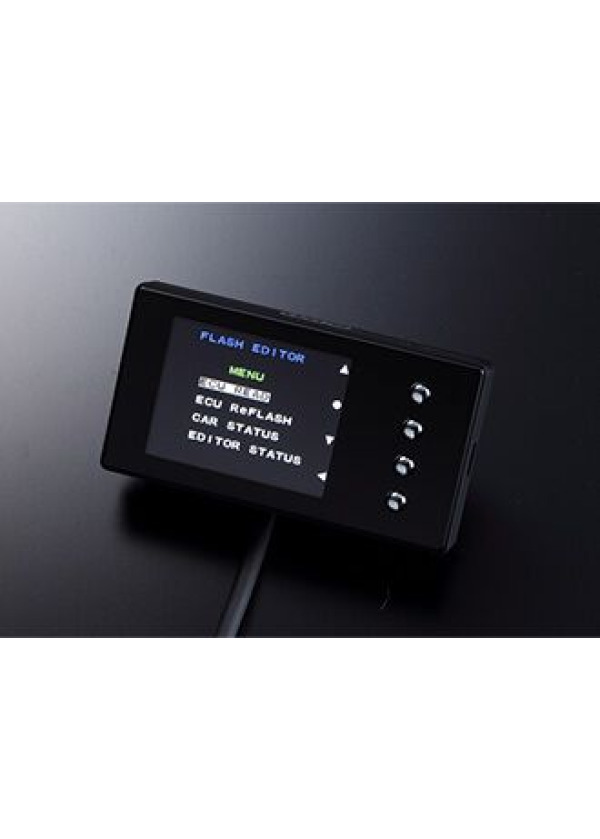

ECU Package includes FLASH EDITOR with preset data.
HKS S/C RON91: RON91 gasoline spec. 255HP (+80HP of the stock)
HKS S/C E85: E85 +PULLEY UPGRADE KIT + Fuel Pump + Injector. 320HP (+150HP of the stock)
The Pulley Upgrade Kit 12002-KK001 for E85 is available separately.
The following injectors and pumps are required to use E85 data.
16U-02-0700-4 Deatsch Werks Fuel Injector 700cc
9-651-1010 Deatsch Werks Fuel Pump
This kit is designed exclusively for FR-S/BRZ. All necessary installation parts are included in the kit.
