HKS LA CLUTCH TWIN JZX90/JZX100/JZX110 1JZ-GTE
Stok Kodu
: SKN4GX5
Stok Durumu
:
Mevcut
Kargo Ücreti
:
450.00 $
$2,510.00
Specifications
Product Code
26011-AT001
WEIGHT(kg)
16.5
NO. OF BOX
1
LENGTH (mm)
410
WIDTH (mm)
410
HEIGHT (mm)
410
Make
TOYOTA
Model
MARK II
Model Year
2000-2004
Engine
1JZ-GTE
Chassis code
JZX110
Drive Train
RWD

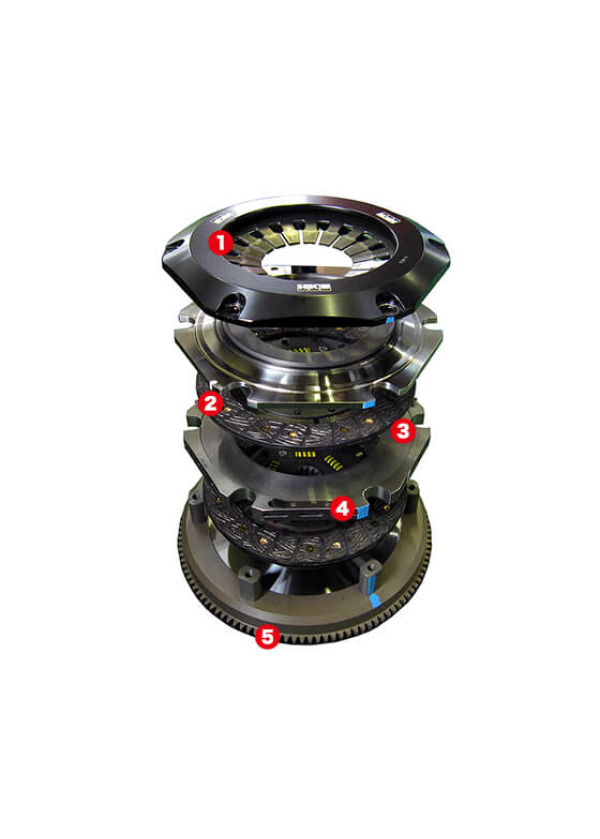

"LA CLUTCH TWIN", which is twin plate clutch with the concept of LA CLUTCH, has been released for 1JZ.
Maximum torque 73kgf-m, horsepower 700ps. With big capacity as metal clutches, easy clutch operation as stock. High total balance clutch system.
3,510.00
$
3 Adet Kaldı! Acele Et!
Ürün Açıklaması
■Comparison of LA Clutch Twin with stock clutch (Mark II JZX90)
| Stock | LA Twin | Comparison | |
| Pedal pressure (N)* | 150 | 175 | 115% |
| FW weight (kg) | 8.37 | 6.88 | 82% |
| KIT weight (kg) | 18.43 | 14.46 | 78% |
Other required parts (not reusable parts)
| Product | Code no. | Qty. |
| Flywheel bolt | 90910-02103 | 8 |
| Clutch release hub snap ring | 96152-00450 | 1 |
| Clutch Release bearing shaft snap ring | 90520-67001 | 1 |
| Input shaft bearing | 90363-12002 | 1 |
Other required part
| Product | Code no. | Qty. |
| Release bearing | 90363-45012 | 1 |
| Clutch Release bearing washer | 90201-71001 | 1 |
| Clutch Release bearing wave washer | 90206-72001 | 1 |
| Clutch thrust cone spring washer | 90201-45023 | 1 |
| Clutch thrust cone spring | 31264-14040 | 1 |
| Clutch Release bearing hub | 31231-14040 | 1 |
Repair parts
| Product | Application Chart | Code no. | Price (w/o tax) |
| Clutch disc (Transmission/Flywheel both) | for 1JZ | 26999-AT007 | |
| Clutch cover | for 1JZ | 26999-AT005 | |
| Pressure plate | for 1JZ/SUPRA | 26999-AT006 | |
| Center plate | Common part | 26999-AK007 | |
| Bolt set (cover) | Common part | 26999-AK008 |
| Make | Model | Engine | Model Year | Transmission Type | Flywheel Weight | Clutch Type | Code No. | |
|---|---|---|---|---|---|---|---|---|
| Transmission Type | Form | |||||||
| TOYOTA | CRESTA | 1JZ-GTE | 1992 - 1996 | Stock 5 speed | PULL | 6.9kg | TWIN | 26011-AT001 |
