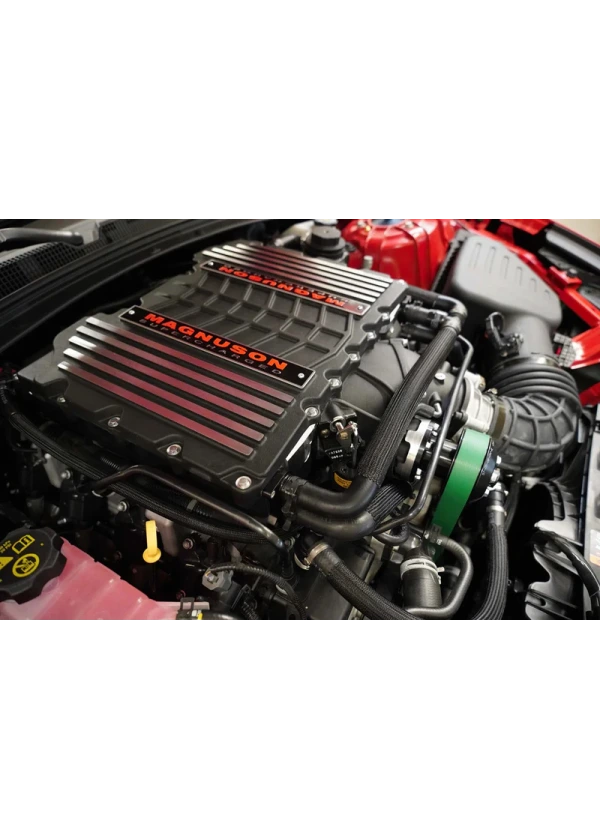

Take your ZL1 or CTSV-3 to the next level with Magnuson’s TVS2650 Magnum Supercharger System! Built off of our premium Magnum Performance Line, our Camaro Magnum System will give your engine an incredible 76 extra horsepower resulting in 726 hp and 690 ft-lbs at the crank! The two massive charge air coolers provide maximum cooling capability for reliable, repeatable performance all day long!

At Magnuson, we only use the highest quality components in our supercharger kits. Everything you need to supercharge your Camaro is included, right down to detailed step-by-step installation instructions. Order yours today and unleash the power of a Magnuson Supercharger on your Camaro!

• 726 hp and 690 ft-lbs at 13 lbs of boost.
• Magnuson TVS2650 Supercharger System designed to mount to GM LT4 heads with OEM look, fit and finish.
• Utilizes Eaton TVS Technology incorporating high helix, four lobe rotors for maximum supercharger efficiency across entire speed range.
• Utilizes patented Dynamic Flow Tuning (DFT) inlet porting.
• Designed to fit under the hood of LT4 vehicles.
• Bolt-on anodized billet cartridge-style front drive allows for future belt line upgrades.
• High flow dual charge air cooler set-up with ¾" water inlet and outlet ports reduce coolant restriction, allowing maximum flow with extremely high cooling efficiency.
• CNC-machined ports for optimized airflow into engine cylinders.
• Vacuum bypass system with instantaneous boost response designed to unload supercharger at engine idle and part-throttle for improved fuel economy. Intercooled bypass air is recirculated through the supercharger for rapid cooldown and ultimate performance.
• Proven maintenance-free supercharger technology. No added complexity of external supercharger oil cooler/heaters for extreme climates.
• Includes handheld tuner device, calibration, and detailed step by step instructions for a seamless installation experience.
• Standard 3-year/36,000-mile limited Supercharger System Warranty. Additional 3-year/36,000-mile limited Powertrain warranty may apply.

Maximizing your efficiency during cruising is the job of the supercharger’s integrated bypass valve. This vacuum operated system allows air to bypass the supercharger and the rotors to “free-spin" under light engine loads. During this situation the parasitic loss of the supercharger system is essentially negated taking less than one-third of a horsepower to turn the rotors. This bypass valve also allows your supercharged vehicle to maintain stock-like drivability and fuel economy - giving you a package that delivers power without compromise.

Down to the smallest part, our Magnuson line of bolt-on supercharger systems are engineered as a complete package. The supercharger, supercharger intake manifold, inlet, pulley, fuel injectors, fuel rails, front & rear fuel crossovers, and intercooler come pre-assembled to make installation simple and easy while the accessory box is organized into individual sub-assemblies to help ensure that you don’t lose track of parts in the middle of your install. All of the hardware needed for a full and complete install is also included so you won’t be running to the local parts store in the middle of your installation. In addition, our full color, step-by-step Installation Manuals will walk you through the install process with exacting attention to detail. Magnuson’s TVS2300 supercharger utilizes EATON’s latest 6th Generation supercharger rotor technology found in such industry leading performance vehicles as the Corvette ZR-1, the Cadillac CTS-V, and the Mustang GT500. These Twin Vortices Series Superchargers feature a pair of four-lobe, high-helix rotors with 160-degrees of overall twist that are housed in Magnuson’s patented high-flow housing. This highly efficient package requires less power to drive, delivers cooler discharge temperatures, and is much quieter than many of its competitors. These superchargers are all manufactured in our TS16949 certified facility – the highest ISO OEM quality certification standard in the market.

• 6th Generation TVS2300 Supercharger with integral bypass valve
• Patented cast-aluminum high-velocity-port intake manifold
• Liquid-to-Air Intercooler
• Extruded aluminum high flow fuel rails
• Front and rear fuel crossovers
• Large front-mounted heat exchanger
• All necessary fittings, lines, belts, and hardware require
